Capstone: An Enterprise Actuarial Rating Platform

The Course 3 champion model behind a FastAPI service, a PostgreSQL database, a Streamlit underwriting portal, containers, and a CI/CD pipeline: an end-to-end, tested, deployable decision-support system.

Lesson 8B · OverviewThe deliverable

A rating_platform package with one module per concern
The Course 3 champion GLM, validated on 2025, served with a verified manifest
A FastAPI service that prices and logs every quote in PostgreSQL
The Executive Underwriting Portal, pricing uploads through the API
Images, Compose, and CI: tested, built, and started with one command

3–4 h

Build, in stages

1 h

Test, containerize, document

Companion notebook: lesson-08b-capstone.ipynb — prototype each stage with self-checking exercises, then move it into the package.

The package1,283 lines of code, 537 lines of tests

rating_platform/
├── pyproject.toml   # extras: portal, train, postgres
├── uv.lock
├── Dockerfile       # targets: api, portal
├── compose.yaml     # db, init, api, portal
├── .dockerignore  .env.example
├── .github/workflows/ci.yml
├── models/champion/  # model.joblib + manifest.json
├── src/rating_platform/
│   ├── settings.py   schemas.py   manual.py
│   ├── model.py      rating.py    money.py
│   ├── db.py         api.py       client.py
│   ├── portfolio.py  monitoring.py
│   ├── dashboard.py  cli.py
│   └── manuals/motor_2025.toml
└── tests/              # 48 tests, fixtures in tests/data

Module	Lines	From
`dashboard.py`	239	Lesson 5
`api.py`	185	Lesson 4
`model.py`	171	Course 3 + 8A
`rating.py`	141	Lessons 1, 4
`db.py`	127	Lesson 6
`cli.py`	89	all
`schemas.py`	83	Lessons 1, 4
`portfolio.py`	72	Lesson 5
`manual.py`, `settings.py`, `monitoring.py`, …	176	1, 7, 8A

Build

Five Stages

Each one working and tested before the next.

Stage 1 · ModelTrain, validate, save with a manifest

$ uv run rating-platform train
saved glm-dcbe5b5dbb to models/champion
  holdout_year: 2025
  holdout_actual_to_expected: 1.0143
  holdout_gini: 0.2753
  trained_rows: 84346
  trained_car_years: 72,780.5092
  trained_claims: 4565

Fit on 2021–2024; check A/E and Gini on 2025; refit on all five years
The same numbers as Course 3’s champion: the same data, the same model, now in a package
model.joblib (a few KB) and manifest.json are committed: the artifact the API serves is reviewed like code

Training reads Parquet (the train extra); the API image doesn’t train, so it doesn’t carry pyarrow.

Stage 2 · Rating & dataThe engine and the book

def build_engine(manual, model, liability_basis,
                 trend_factor=1.0, target_loss_ratio=0.68):
    if liability_basis == "model":
        liability = ModelLiability(model, trend_factor,
                                   target_loss_ratio)
    else:
        liability = ManualLiability(manual)
    return RatingEngine({"LIAB": liability,
                         "COLL": ManualCollision(manual),
                         "COMP": ManualComprehensive(manual)},
                        liability_basis)

$ uv run rating-platform init-db
loaded 18,249 vehicles into sqlite
(expected losses from glm-dcbe5b5dbb)

Liability from the model (pure premium × 1.04^1.5 ÷ 0.68), collision and comprehensive from the manual; RP_LIABILITY_BASIS=manual switches back without a code change. init-db scores the 2025 book with the champion and loads it in one transaction.

Stage 3 · ServiceThe API, with the quote log

Endpoint	Does
`POST /quotes`	validate, price, store, return (201)
`POST /quotes/batch`	up to 1,000 in one transaction, one model call
`GET /quotes/{id}`	a stored quote (404 if none)
`GET /health`	status, model version, database
`GET /model`	the manifest
`GET /monitoring/drift`	PSI of recent quotes vs the book

quote requests: 963 valid, 37 rejected before
                reaching the API
batch of 963: 0.20 s, total premium 1,577,722.41

Writes and reads of quotes need the API key
Every quote row stores the request, the premiums, and the model version

Stage 4 · PortalDecisions on the live book

Current rates: projected loss ratio 77.7%, margin −2.7%
The rate review proposal: +9.2% premium, 71.2%, margin +3.8%, and 10,902 customers up 25%
Saved scenarios, shareable preset links, batch uploads priced through the API

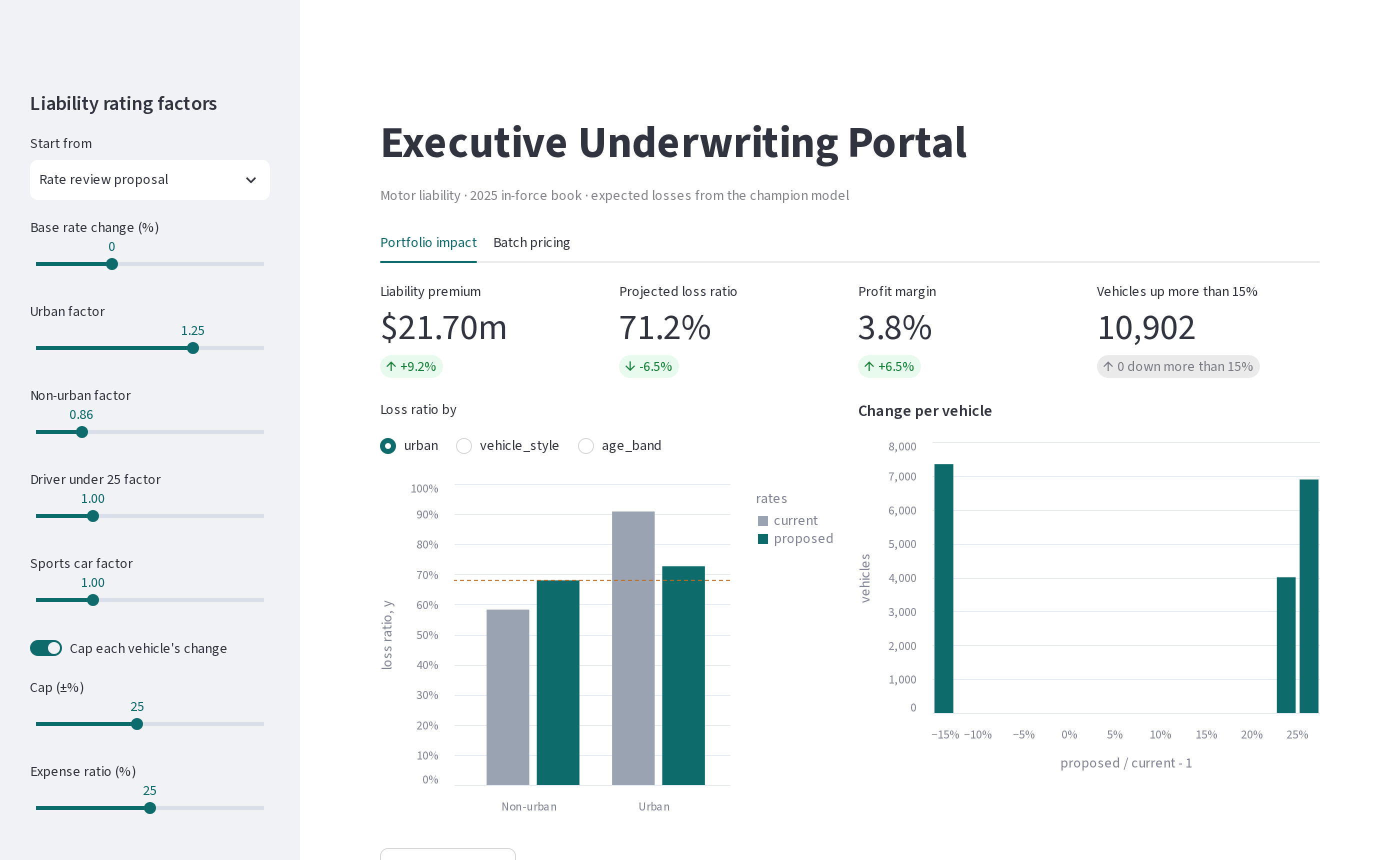

The Executive Underwriting Portal showing the rate review proposal: premium 21.70 million, loss ratio 71.2 percent, margin 3.8 percent

Stage 5 · ShipContainers and the pipeline

$ docker compose up --build -d
$ curl -s localhost:8000/health
{"status":"ok","model_version":"glm-dcbe5b5dbb",
 "database":"postgresql"}
$ curl -s -H "X-API-Key: $KEY" \
    "localhost:8000/monitoring/drift?last=963"
{"quotes": 963, "reference_vehicles": 18249,
 "features": [
  {"feature": "driver_age", "psi": 0.0061,
   "status": "stable"}, ...]}

Check	Result
Tests	48 passed, 96% coverage
ruff, mypy --strict	clean
Images	API 521 MB, portal 807 MB, non-root
Workflow	actionlint clean; smoke test passes locally
Start to healthy	2.2 s

Hand-inWhat “done” means

Area	Evidence
Correctness	boundaries, contract, transactions, model integrity; ≥ 90%
Model	manifest with holdout A/E and Gini; refuses tampering
Service	201 / 401 / 404 / 422; OpenAPI page; vectorized batch
Data	quotes in PostgreSQL with the model version; UTC timestamps
Portal	proposal numbers match the answer key; AppTest tests
Operations	one-command start; no secrets in images or Git; drift endpoint; CI (checks → images → smoke test) green

Add a one-page README for a reviewer: what it does, how to run it, how the model was validated, what you monitor.

Extensions: PostgreSQL in CI; rate limits; a registry with version tags; a shadow-scored challenger.

Capstone · answer keyNumbers your platform should reproduce

Holdout A/E · Gini	1.0143 · 0.2753
Training rows · claims	84,346 · 4,565
Base risk quote (Sedan, 45, 12,000 mi, $30k, $500s)	LIAB 726.73 · COLL 576.85 · COMP 158.35
22, Sports, urban, 16,000 mi, $45k	LIAB 4,648.59 · total 7,008.88
Quote requests: valid · rejected	963 · 37
Total premium, 963 quotes	$1,577,722.41

Book loaded	18,249 vehicles
Current loss ratio · margin	77.7% · −2.7%
Proposal: premium · loss ratio	+9.2% · 71.2%
Proposal: vehicles up > 15%	10,902
Driver-age PSI, new business	0.0061
After the campaign	0.6742 (investigate)

Course 4 recapWhat you can now do

Turn a script into a typed, validated package with clear design
Prove it works with tests, properties, linters, and CI
Simulate millions of scenarios, reproducibly and fast
Serve a model through a documented, secured API

Put live portfolio decisions in front of the business
Store and query data with integrity, at scale
Ship it all in containers with secrets kept out
Deliver changes through a pipeline, and monitor what comes back

Python for Actuarial Students

Course 4 complete · Next: Course 5 (proposed)

Advanced Actuarial Analytics: Reserving, Uncertainty & Responsible AI

Claims data at scale, stochastic reserving, experience studies, Bayesian credibility, extreme values and capital, deep learning, and the governance that makes advanced models usable.
